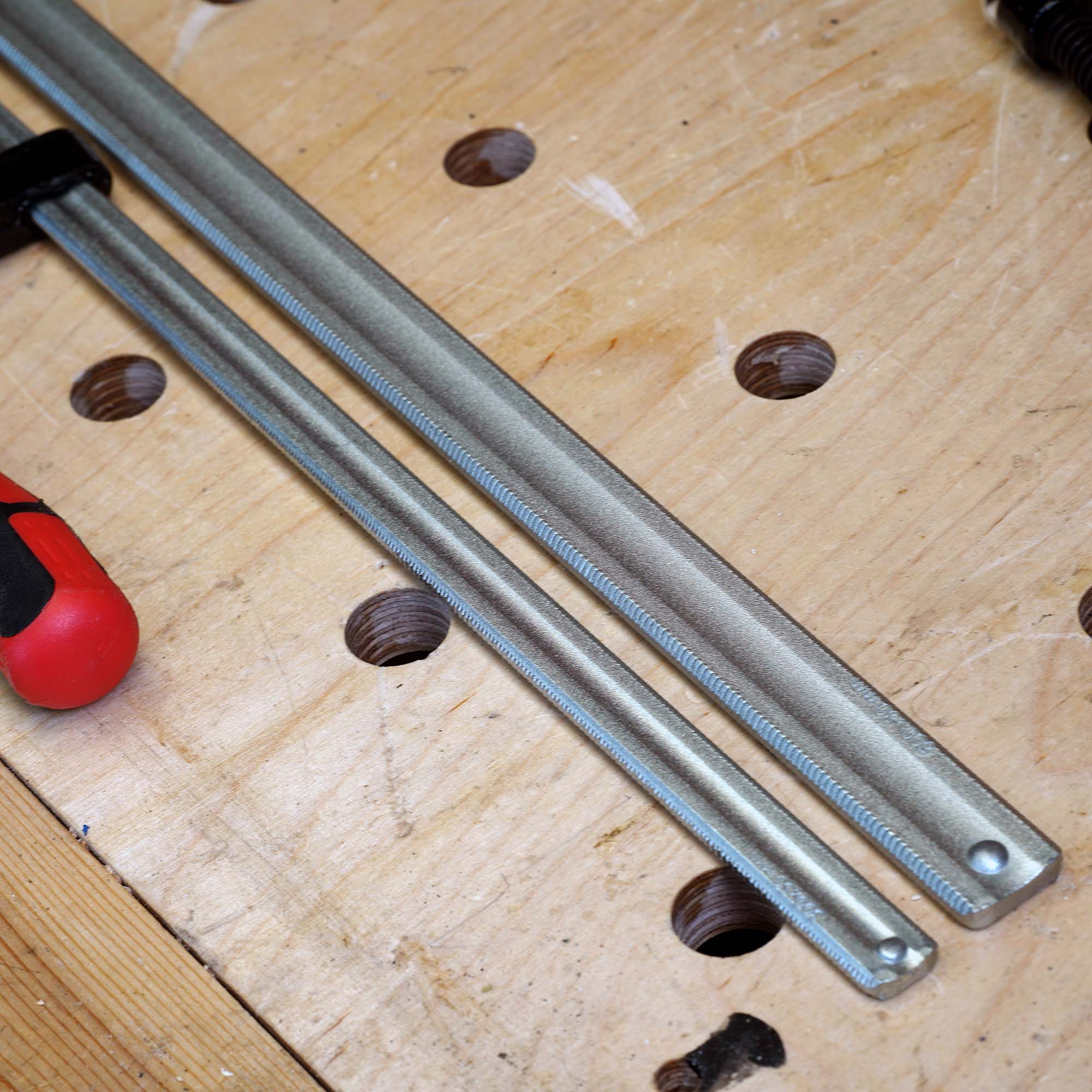

F clamp comparisonF clamp comp

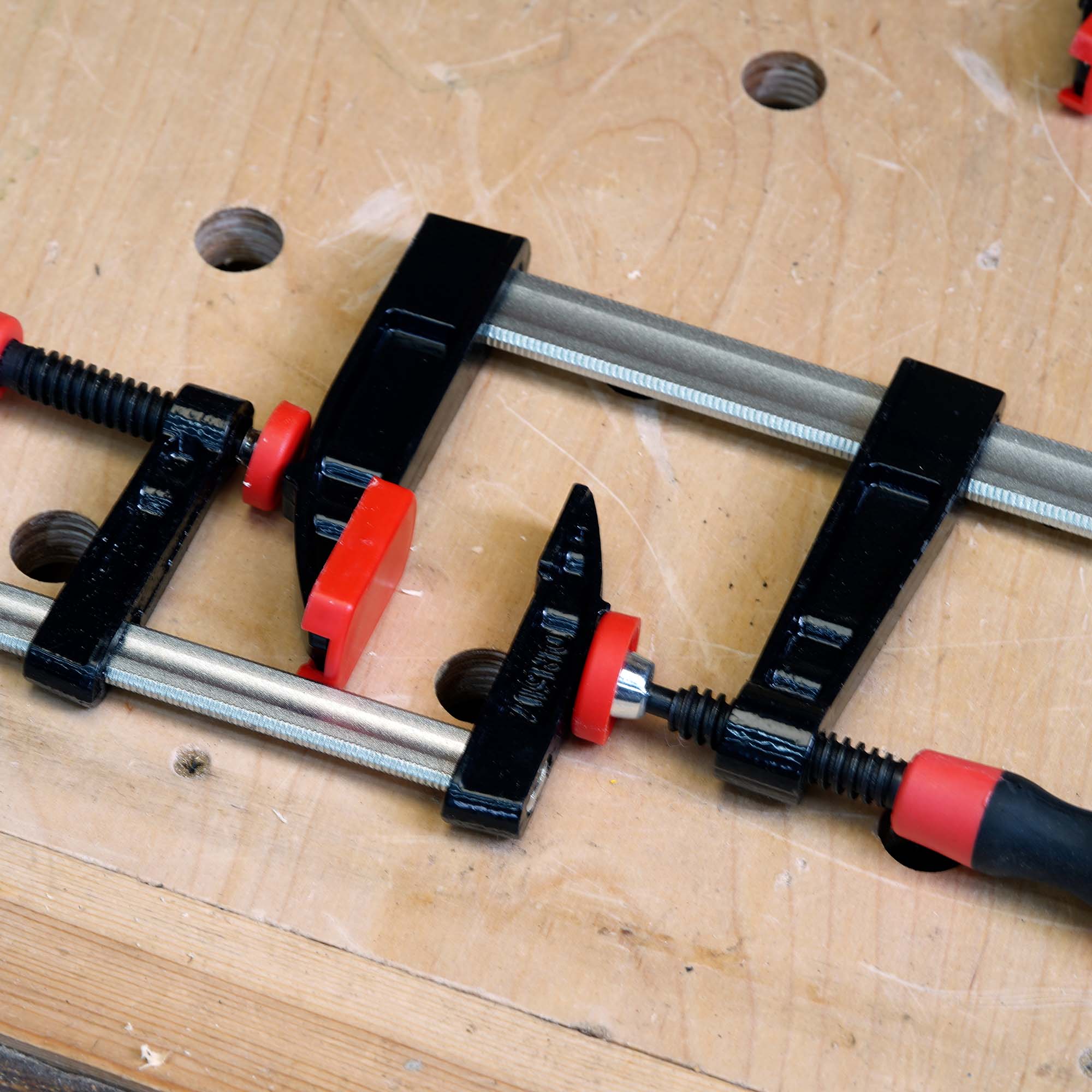

F clamp jaw comparison

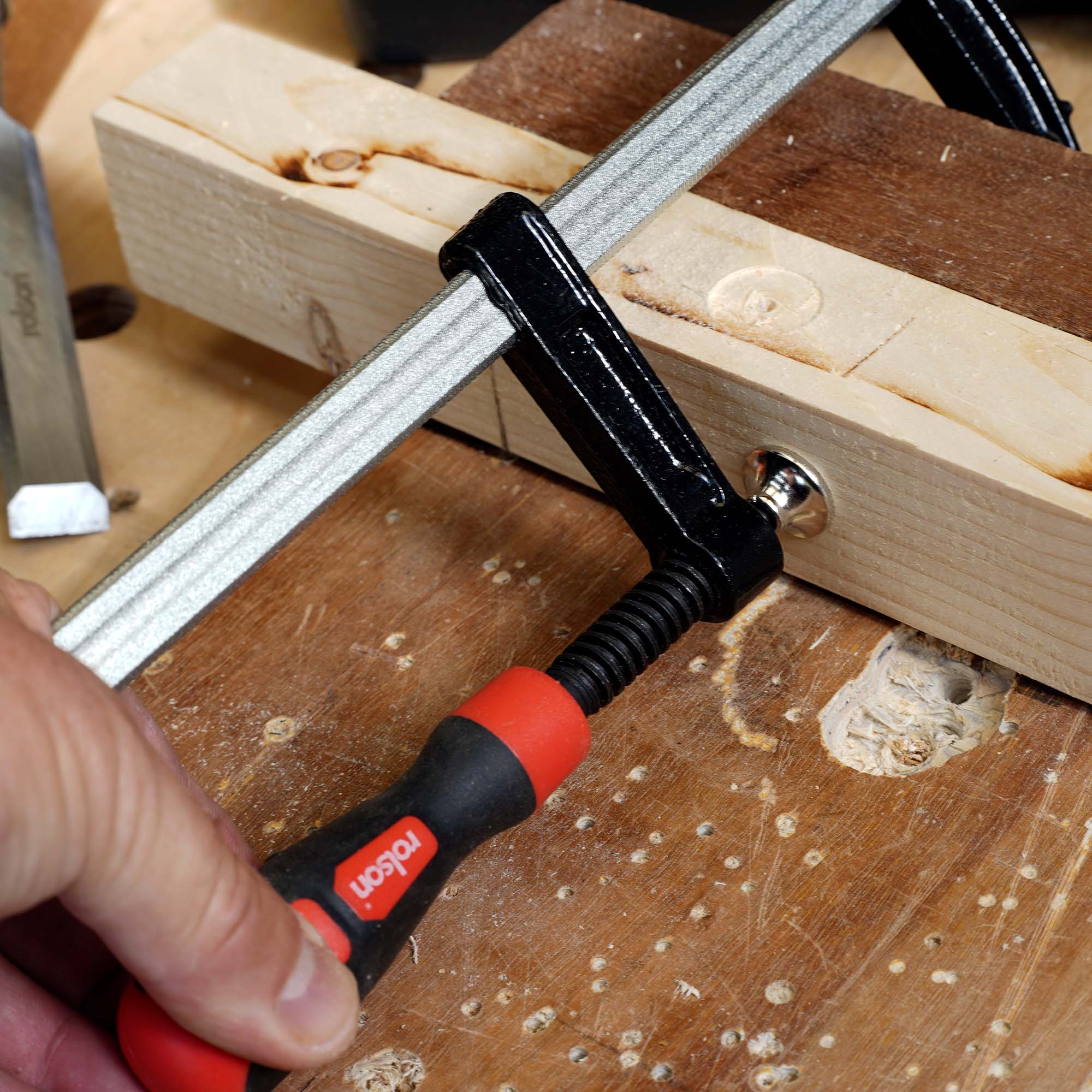

F Clamp setting 2

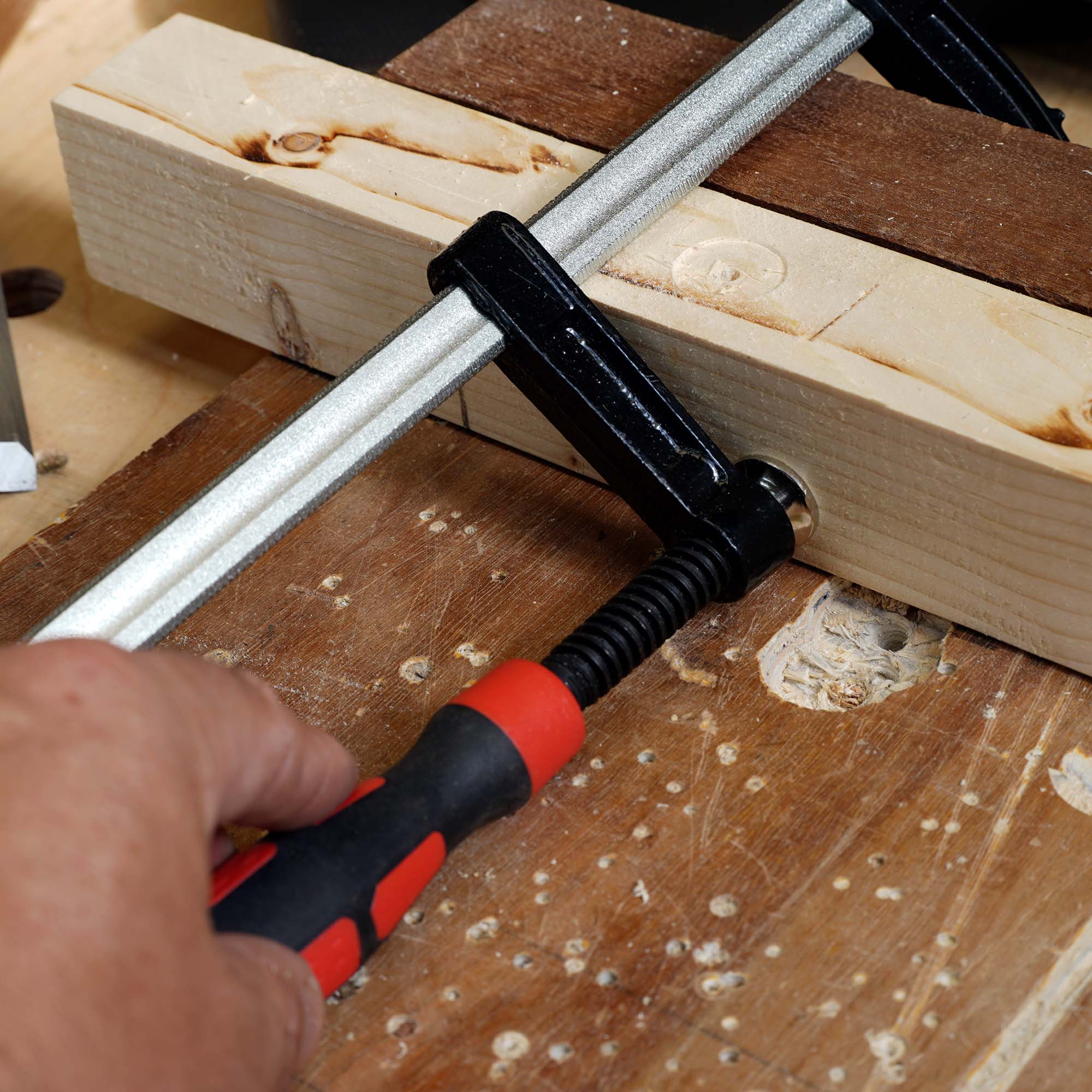

F clamp setting 3

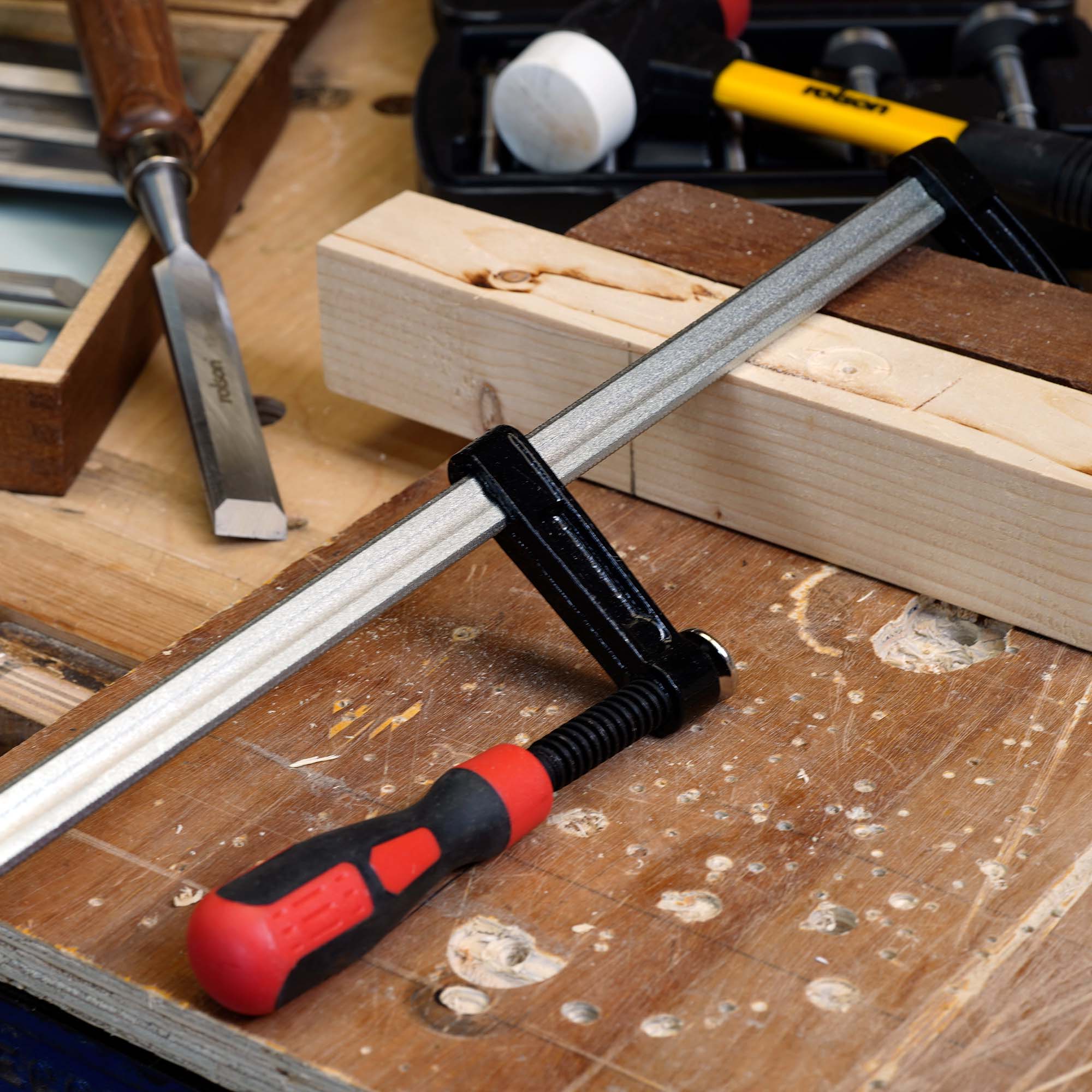

f clamp setting 4

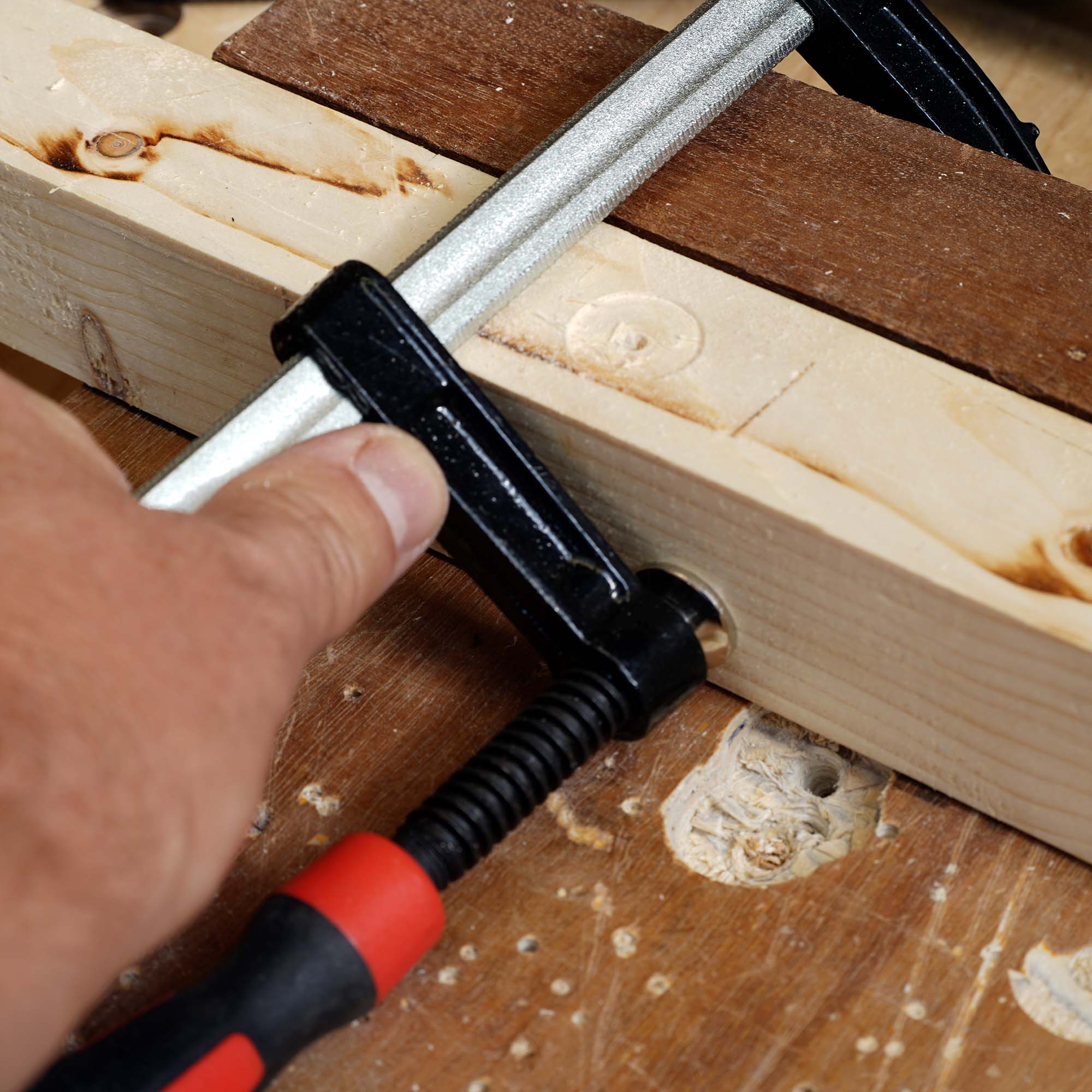

F Clamp setting
Roll over image to zoom in Click on image to zoom
14362 HD F Clamp14262300 x 50mm Heavy Duty F-Clamp300 x 50mm Heavy Duty F-ClampF clamp comparisonF clamp compF clamp jaw comparisonF Clamp setting 2F clamp setting 3f clamp setting 4F Clamp setting

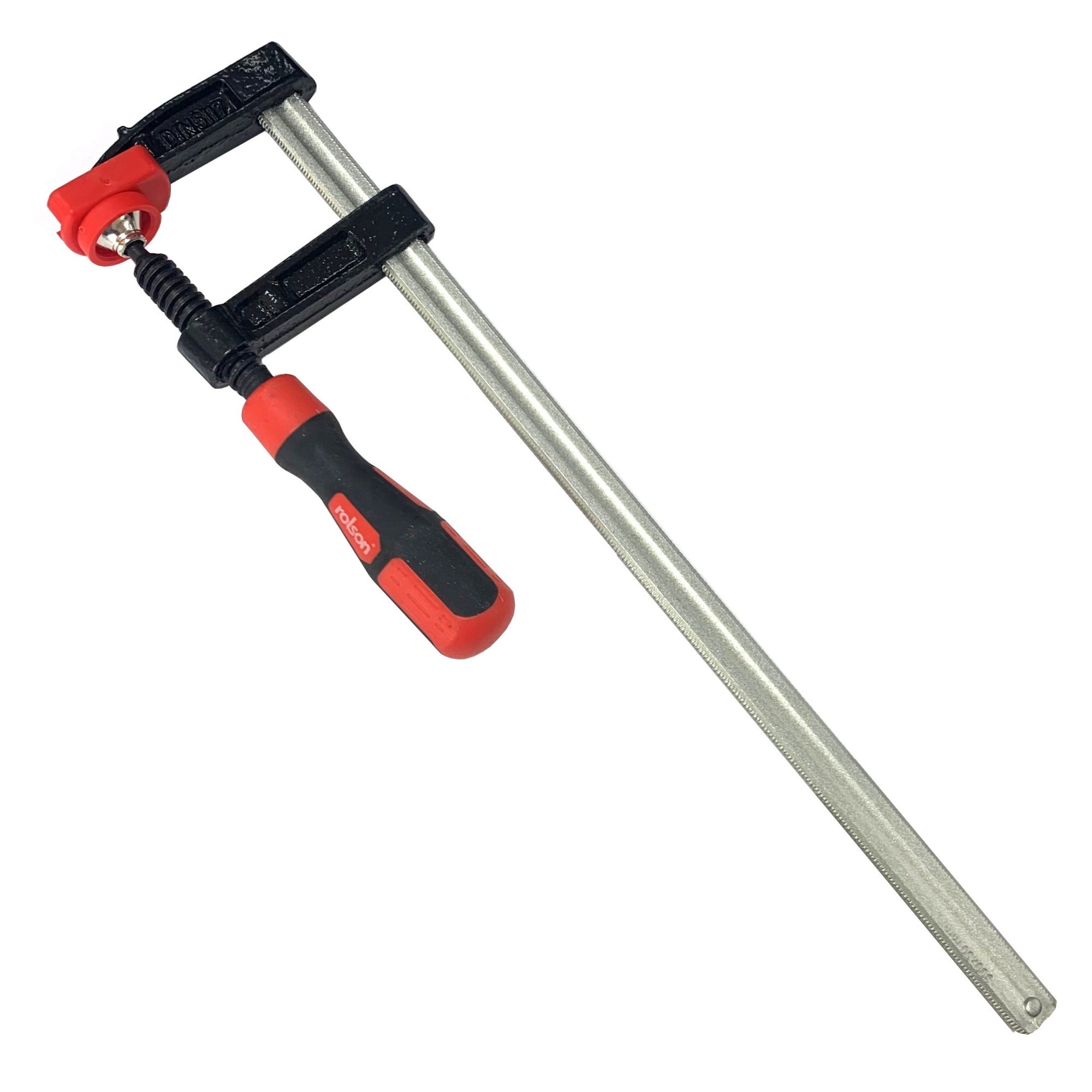

300 x 50mm Heavy Duty F-Clamp

Rolson ToolsSKU: 14362
Price:
Login view prices

Product Information

SKU: 14362
Barcode:
Description:
300 x 50mm Heavy Duty F-Clamp - Cast iron jaws with soft grip handle and non - marking plastic jaw guards. Grooves in sliding bar for easy movement. Maximum jaw capacity 300mm

Great for all holding purposes on wood, steel and other materials. Suitable for all general clamping applications. Easy to adjust by sliding the clamp to approximate position and then using the handle to tighten the screw thread  to the desired pressure.
Part of a range of clams

  • Cast iron jaws - manufactured in toughened die cast zinc black powder coated to prevent chemical corrosion
  • Soft grip handle - for comfort and grip
  • Protective Non Marking Covers - to prevent damage to work pieces
  • Removable soft plastic jaw guards -  for when a stronger hold is required
  • Strong thread - total length 50mm
  • Quickly adjustable - grooves in the serrated bar allow easier sliding of moving jaw

Specification
Maximum jaw capacity 300mm length
Maximum Jaw capacity depth - 65mm - 50mm to centre of jaw
Bar Dimension - 15 x 5 mm by 330mm long
Total unit size 350mm x 80mm
Handle size - 90mm x 25mm diameter
Material - Alloy, Metal and plastic
